FS75R12KT3 1200V 75A IGBT Module Trenchstop IGBT3 Fast EmCon Diode Sixpack Configuration Integrated NTC Low Inductance High Power Density EconoPACK™2 for Drives
Features
-
Technology: Employs fast trench/field-stop IGBT3 and Emitter Controlled High Efficiency (HE) diode, ensuring minimal switching losses and excellent thermal behavior .
-
Low Saturation Voltage: Features a low VCE(sat) of typically 1.7V (max 2.15V @ 75A), reducing conduction losses and improving overall system efficiency .
-
Module Configuration: Sixpack (three-phase inverter) configuration with a compact, industry-standard EconoPACK™2 package for easy assembly and interchangeability .
-
Integrated NTC: Built-in NTC thermistor provides accurate real-time temperature monitoring for reliable thermal management and protection .
-
Low Inductance: Features a low stray inductance module design, enabling clean switching and reduced overvoltage stress .
-
High Power Density: Compact module concept delivers high power density, optimizing space in power conversion systems .
-
RoHS Compliant: Manufactured with environmentally friendly, lead-free materials
Applications
-
Motor Control and Drives: Ideal for general purpose motor drives, variable frequency drives (VFDs), servo drives, and industrial automation .
-
Industrial Heating and Welding: Suitable for induction heating equipment and welding power supplies .
-
HVAC Systems: Widely used in commercial and industrial room air conditioners and compressor drives .
-
Renewable Energy: Applicable in solar inverters and other power conversion systems
Description
The FS75R12KT3 is a high-performance 1200V / 75A IGBT power module from Infineon's established EconoPACK™2 series, designed to deliver exceptional efficiency and reliability in demanding industrial power conversion systems . It utilizes advanced TRENCHSTOP™ IGBT3 technology combined with an EmCon High Efficiency diode, providing a perfect balance between low conduction losses and soft-switching performance
INFORMATION
|
category
|
Discrete semiconductor products
Transistors
IGBT
IGBT module
|
|
|
manufacturer
|
|
|
|
series
|
EconoPACK™ 2
|
|
|
Packaging
|
|
|
|
Part status
|
|
|
|
IGBT type
|
|
|
|
configuration
|
|
|
|
Voltage - Collector breakdown (max)
|
|
|
|
Current - Collector (IC) (max)
|
|
|
|
Power - maximum
|
|
|
|
Vce(on) (maximum) at different Vge, IC
|
|
|
|
Current - Collector cut-off (max)
|
|
|
|
Input Capacitance (Cies) at Different VCEs
|
|
|
|
Input
|
|
|
|
NTC thermistors
|
|
|
|
Operating temperature
|
|
|
|
Mounting type
|
|
|
|
Package/Enclosure
|
|
|
|
Vendor device packages
|
|

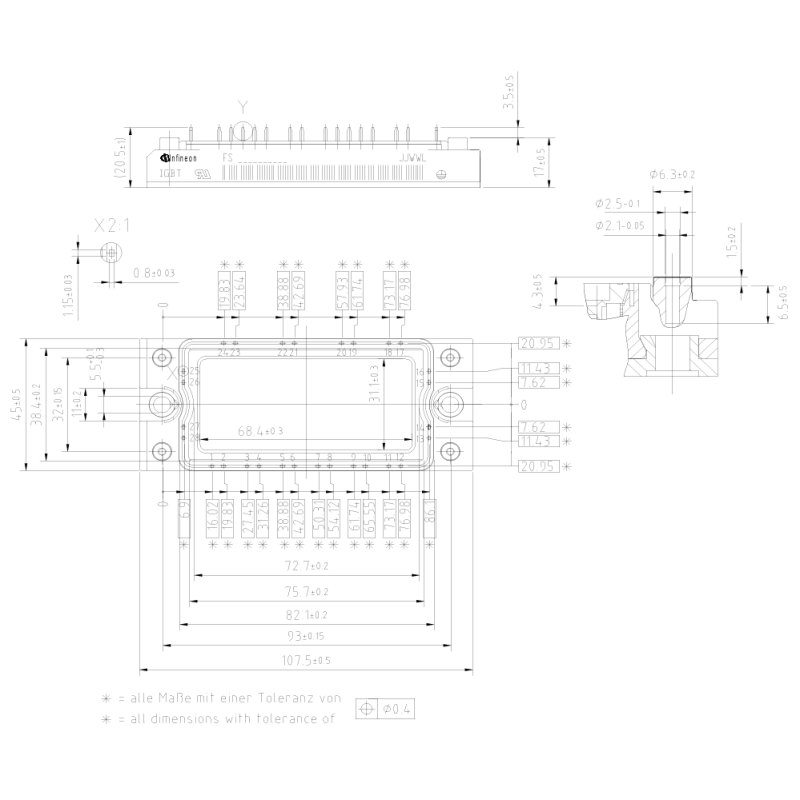

Drawing
