0402N5R6C500 5.6pF MLCC 50V C0G/NP0 ±0.25pF Tol 0402 -55°C to +125°C

Product Categories
TOP Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

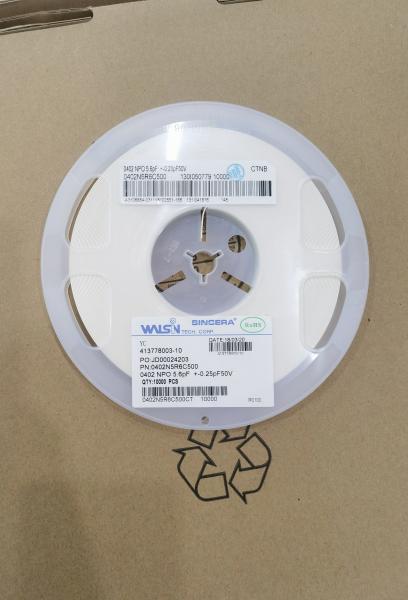

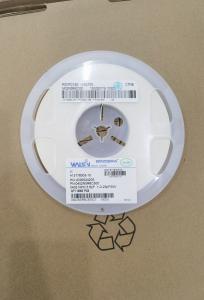

0402N5R6C500 5.6pF MLCC 50V C0G/NP0 ±0.25pF Tol 0402 -55°C to +125°C

  • 1
  • 2

Brand Name : Walsin

Model Number : 0402N5R6C500

Certification : CE,ROHS

Place of Origin : China

MOQ : 1pcs

Frequency Stability : ±50ppm

Frequency Tolerance : ±30ppm

Operating Temperature : -40°C ~ 85°C

Load Capacitance : 18pF

Package / Case : HC-49/US

Name : Passive Electronic Components

Contact Now

0402N5R6C500

DESCRIPTION

MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve miniaturization, high density and high efficiency, ceramic condensers are used. MLCC is made by NP0 (C0G), X7R, X5R And X6S dielectric material and which provides product with high electrical precision, stability and reliability.

MAIN FEATURE

• A Wide Selection Of Size Is Available

• Rated Voltage Range 6.3V ~ 100V

• High Capacitance In Given Case Size

• Temperature Characteristics: NP0 (C0G), X7R, X5R and X6S

• Capacitor With Lead-free Termination (Pure Tin)

• REACH/RoHS/RoHS III Compliant

APPLICATION

• General Digital Circuit

• Power Supply by pass capacitors

• Consumer Electronics

• Telecommunication

INFORMATION

Category
Mfr
Aillen
Series
0402
Packaging
Tape & Reel (TR)
Part Status
Active
Capacitance
5.6 pF
Tolerance
±0.25pF
Voltage - Rated
50V
Temperature Coefficient
C0G, NP0
Operating Temperature
-55°C ~ 125°C
Applications
General Purpose
Mounting Type
Surface Mount, MLCC
Package / Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max)
0.027" (0.68mm)

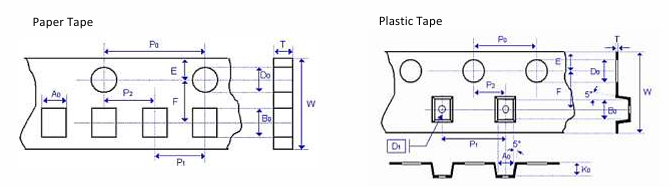

Drawing

0402N5R6C500 5.6pF MLCC 50V C0G/NP0 ±0.25pF Tol 0402 -55°C to +125°C

----------------------------------------------------------

1. 10 years components experience; One-Stop service for BOM list; PCB&PCBA Service.

2. Produce Communication Antenna, RF Coaxial Cable, RF Connector,Terminals.

3. Distribute GSM/GPRS,GPS,3G,4G/LTE Module.

Our high quality products , competitive price and professional service,

be sure to meet your need for all kinds of components. ^_^
